Legacy hydronic heating systems harbor a hidden operational drain that quietly consumes facility energy budgets: constant-speed pumps. These traditional units run at full capacity regardless of actual thermal demand, pushing water through pipes at maximum velocity even when building zones require minimal heat. This continuous, unregulated operation accounts for a disproportionate share of overall HVAC energy consumption. Facility managers and system engineers face a persistent dual challenge. They must meet increasingly strict energy compliance standards while maintaining optimal thermal comfort across diverse building zones, often constrained by aging infrastructure and rising utility costs. Upgrading to a modern, variable-speed heating system circulating pump represents a fundamental shift in fluid management. This is not a simple equipment swap. It is a strategic engineering decision requiring a rigorous technical evaluation of motor technology, system hydraulic compatibility, and long-term return on investment.
Technology Shift: Transitioning from standard induction motors to Electronically Commutated Motors (ECMs) fundamentally changes the baseline for circulating pump efficiency, often reducing pump energy use by up to 50-80%.
Adaptive Performance: True efficiency relies on variable speed drives (VSDs) and intelligent controls (Delta-P, Delta-T) that match pump output to real-time system load, running at optimal speeds only when needed.
System Integration: An energy efficient pump is only as effective as its integration; proper sizing, hydraulic balancing, zoning compatibility, and Building Management System (BMS) connectivity are critical for realizing projected savings.
Lifecycle Over Initial Cost: While capital expenditure for smart commercial heating pumps is higher, factoring in energy savings, reduced wear, and maintenance justifies the investment within 2 to 4 years.

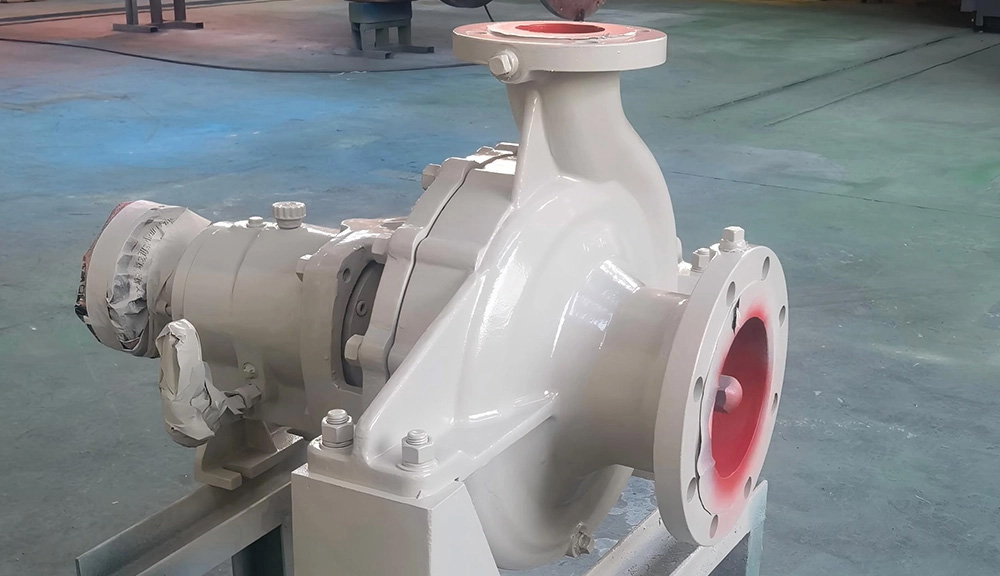

Understanding pump mechanics begins at the volute and impeller. The pump's impeller rotates rapidly, drawing fluid into the center eye and using centrifugal force to push it outward against the casing. This action converts the mechanical kinetic energy of the motor into the hydrostatic pressure required to move water through the complex piping network of a hydronic loop. The efficiency of this energy conversion dictates the operational cost of the entire heating network. In the field, you will notice that poorly designed volutes create internal turbulence, which wastes motor power and generates excessive mechanical noise.
The Energy Efficiency Index (EEI) serves as the definitive industry standard for benchmarking pump performance. A lower EEI value indicates a more efficient pump. Regulatory frameworks increasingly use EEI to phase out outdated, energy-intensive motors. Evaluating a pump requires analyzing the precise relationship between flow rate (measured in Gallons Per Minute or GPM), head pressure (measured in feet of water), and electrical consumption (measured in kilowatts or kW). The intersection of these metrics forms the pump performance curve, which dictates how effectively the unit translates electrical input into hydraulic output. When we audit a mechanical room, we always start by mapping the existing pump's operating point on its original curve to see how far it has drifted from its design parameters.
Traditional fixed-speed pumps operate on a binary on/off cycle. When the boiler fires, the pump activates at 100% capacity. This creates severe mechanical limitations and massive energy waste. If the building only requires 30% of its maximum heating capacity because it is a mild autumn day, a fixed-speed pump still consumes 100% of its rated electrical power. It forces excess water through partially closed control valves, creating unnecessary pipe friction, system noise, and accelerated component wear. We frequently see two-way valves failing prematurely simply because a fixed-speed pump is dead-heading against them.
Variable speed technology eliminates this waste by leveraging the Affinity Laws of hydraulics. The most critical Affinity Law states that pump power consumption drops at the cube of the speed reduction. If a variable speed pump reduces its motor speed by 50% to match a lower heating load, its electrical power consumption does not drop by 50%. It drops to approximately 12.5% of its maximum draw. This exponential reduction in energy use during partial load conditions is the primary driver of modern circulating pump efficiency.
Motor Speed (%) | Flow Rate (GPM) | Head Pressure (%) | Power Consumption (%) |
|---|---|---|---|
100% | 100% | 100% | 100% |
90% | 90% | 81% | 73% |
75% | 75% | 56% | 42% |
50% | 50% | 25% | 12.5% |
Pump efficiency extends beyond electrical consumption; it directly impacts boiler fuel efficiency. Inefficient, oversized, or constant-speed pumping creates a phenomenon known as the boiler penalty. When a pump moves water too quickly through the heating loop, the water does not have sufficient time to transfer its heat to the building spaces via the radiators or air handling coils. It returns to the boiler at a much higher temperature than designed.
High return water temperatures severely degrade boiler performance. In modern condensing boilers, the return water must be cool enough (typically below 130°F) to condense the flue gases and extract latent heat. If an oversized pump forces 160°F water back to the boiler, the boiler cannot condense, dropping its thermal efficiency from 95% down to 80% or lower. Furthermore, rapid circulation often causes boiler short-cycling, where the burner rapidly turns on and off. This wastes natural gas and destroys internal ignition components.
The transition to Electronically Commutated Motors (ECMs) represents a massive leap in mechanical engineering. Traditional AC induction motors rely on electromagnets in both the stator and the rotor, which requires inducing a magnetic field across an air gap. This induction process inherently wastes energy through heat generation and magnetic slip. You can literally feel this wasted energy as heat radiating off the casing of an old induction motor.
ECMs are brushless DC motors equipped with permanent magnets on the rotor. Because the magnetic field is permanently established, the motor does not waste electrical energy inducing a rotor field. An integrated microprocessor electronically commutates the stator windings, precisely controlling the magnetic sequence to spin the rotor. This design allows ECMs to maintain exceptionally high efficiency profiles even at very low speeds. For dynamic heating loads that spend 90% of their operational life at partial capacity, ECM technology is an absolute necessity.
Specifying the correct pump requires exact hydraulic matching. Undersizing a pump leads to inadequate heat distribution, leaving distant building zones permanently cold and generating constant occupant complaints. Oversizing a pump results in excessive electrical energy use, chronic pipe noise, and premature destruction of control valves due to high differential pressure.
Engineers must plot the calculated system curve against the manufacturer's pump performance curve. The system curve represents the friction loss of the piping network at various flow rates. The exact point where the pump curve intersects the system curve is the operating point. The goal is to ensure this intersection occurs at the pump's Best Efficiency Point (BEP). Operating consistently near the BEP maximizes hydraulic output while minimizing radial thrust on the pump bearings, significantly extending equipment lifespan.
Modern pumps offer multiple control algorithms to match specific piping layouts. Selecting the wrong mode will negate the hardware's efficiency potential.
Proportional Pressure Control: Reduces the pump's head pressure as the flow rate decreases. This mode is ideal for systems with high pressure losses in the distribution pipes, such as large radiator networks. As valves close, the pump slows down, reducing pressure to prevent whistling noises at the valve seats.
Constant Pressure Control: Maintains a steady head pressure regardless of flow rate changes. This algorithm suits systems with very low pipe pressure losses, such as extensive underfloor radiant heating manifolds.
Constant Temperature / Delta-T Control: Adjusts the pump speed to maintain a specific temperature drop between the supply and return lines, ensuring optimal heat extraction in the zones and ideal return temperatures for the boiler.
Zoning dynamics heavily influence pump behavior. When thermostatic radiator valves (TRVs) or electronic zone valves close in response to solar gain or internal heat loads, the system's hydraulic resistance increases. A smart pump instantly detects this microscopic pressure change and automatically reduces its motor speed. This dynamic response ensures optimal comfort across all active zones at the lowest possible energy draw.
Enterprise-level efficiency requires complete visibility. An energy efficient pump must integrate seamlessly with the facility's Building Management System (BMS). This integration relies on standardized communication protocols such as BACnet, Modbus, or LONworks. Hardwired relay connections only provide basic run/fault status, which is insufficient for modern energy auditing.
Digital BMS integration allows facility managers to monitor real-time flow rates, power consumption, and operating temperatures from a central dashboard. This continuous data logging is invaluable for predictive maintenance. If a pump's power consumption gradually increases while delivering the same flow, the BMS can flag a potential impeller blockage or bearing degradation long before a catastrophic failure occurs. We routinely set up custom alarms in the BMS to alert maintenance staff if the pump operates outside its designated efficiency envelope for more than 24 hours.
Standard AC induction pumps represent the legacy infrastructure of the HVAC industry. Their primary operational reality is a lower initial purchase cost and a massive global availability of replacement parts. Maintenance teams are highly familiar with their simple contactor-driven operation. However, these benefits mask severe limitations in efficiency and adaptability.
These pumps operate blindly. They push a fixed volume of water regardless of whether the building is freezing or overheating. While still found in older facilities with limited capital budgets, the financial threshold that triggers a replacement decision is dropping rapidly. The sheer cost of the electricity wasted by a fixed-speed induction motor over a single heating season often exceeds the price premium of upgrading to an ECM alternative. Continuing to repair these outdated units is a poor allocation of maintenance funds.
Modern smart pumps feature auto-adapt functionalities that continuously analyze system behavior. These pumps monitor pressure and flow continuously, mapping the system's hydraulic response over days and weeks. They automatically adjust their internal control curve to find the absolute minimum energy required to satisfy the heating load, operating entirely without manual intervention.
The trade-offs involve a higher upfront capital expenditure and the necessity for specialized commissioning. A smart pump is a sophisticated electronic device requiring clean power and proper grounding. However, when weighed against long-term operational savings, reduced boiler fuel consumption, and extended system longevity, the adaptive technology clearly dominates the lifecycle analysis.
Selecting the right hardware requires vetting the HVAC pump manufacturer thoroughly. Hardware specifications alone do not guarantee a successful installation. Engineers must evaluate the availability of localized technical support. When a complex hydronic issue arises, having access to regional factory engineers is critical for rapid troubleshooting.
High-tier manufacturers provide comprehensive engineering documentation. This includes detailed pump curves, NPSH (Net Positive Suction Head) requirements, and electrical schematics. Furthermore, the availability of accurate BIM (Building Information Modeling) and CAD models allows mechanical engineers to integrate the pump directly into 3D facility designs, ensuring spatial compatibility and accurate pipe routing prior to construction.
Commercial heating systems cannot tolerate extended downtime. The supply chain robustness of the manufacturer directly impacts facility resilience. Facility managers must analyze the availability of replacement parts, electronic drive modules, and seal kits. Short lead times for a commercial heating pump replacement are mandatory to prevent building freeze-ups during peak winter conditions.
Warranty structures provide a clear indication of a manufacturer's confidence in their technology. ECMs and their integrated variable frequency drives operate in hot, vibration-prone environments. A comprehensive, multi-year warranty covering both the mechanical wet-end and the electronic drive module demonstrates robust internal engineering and rigorous factory testing.
Installing a highly efficient pump into a poorly balanced system presents a major implementation risk. A new smart pump will not fix underlying hydraulic flaws, undersized piping, or bypassed zones. If a system suffers from severe short-circuiting—where water takes the path of least resistance back to the boiler—the new pump will simply circulate that short-circuited water more efficiently.
Mitigating this risk requires mandating a comprehensive system audit prior to pump specification. Technicians must perform precise hydraulic balancing, adjusting balancing valves across all branches to ensure proportional flow distribution. Only after the piping network is balanced can the new pump accurately read system pressure and modulate its speed effectively.
Hydronic water quality directly threatens modern ECM technology. Older steel and iron piping networks constantly shed microscopic iron oxide particles, commonly known as magnetite. Because ECMs utilize powerful permanent magnets in their rotors, they actively attract this black iron sludge. The magnetite builds up inside the motor casing, scoring the rotor, destroying the bearings, and eventually seizing the pump.
Mitigation is non-negotiable: contractors must install high-capacity magnetic dirt separators directly upstream of any new ECM hot water circulation pump. Additionally, maintaining proper system static pressurization via expansion tanks is critical to prevent cavitation. Cavitation occurs when low pressure causes water to flash into vapor bubbles, which then violently implode against the impeller, destroying the metal surfaces in a matter of months.
The most common failure point in modern pump deployment occurs immediately after physical installation. Installers frequently wire the smart pump, verify it moves water, and leave it in its default factory setting. A variable-speed pump left on a fixed-speed maximum default setting provides zero energy savings. It operates exactly like the inefficient legacy pump it replaced.
Proper calibration is the only way to unlock the engineered efficiency of the hardware. We mandate the following commissioning sequence for all smart pump installations:
Verify physical installation, flange alignment, and electrical connections against manufacturer schematics.
Purge all air from the volute and piping network to prevent dry-running the mechanical seal.
Access the digital interface to select the control mode matching the specific piping layout.
Input the maximum head limit based on the engineered system curve to prevent over-pressurization.
Establish and test the communication link with the facility's central BMS interface.
Maximizing circulating pump efficiency remains a non-negotiable requirement for modernizing commercial heating systems. Upgrading from static induction motors to intelligent, variable-speed ECMs directly reduces electrical consumption, eliminates the boiler penalty, and ensures precise thermal delivery across all building zones. The integration of these advanced pumps transforms a static piping network into a dynamic, responsive thermal management system.
To capture these operational benefits and protect your mechanical investments, execute the following steps:
Initiate a comprehensive pump energy audit to calculate your current baseline EEI and identify the most wasteful fixed-speed units.
Install magnetic dirt separators on the main return lines to clean the hydronic fluid and protect future ECM equipment.
Consult with a specialized hydronic engineer to map out a phased retrofit strategy.
Mandate that every new pump installation includes full hydraulic balancing and digital commissioning by a certified technician.
A: Upgrading typically yields a 2 to 4-year payback period. This rapid return is driven by an 80% reduction in pump electrical consumption, significant boiler fuel savings from optimized return water temperatures, utility efficiency rebates, and reduced mechanical wear on system valves.
A: Variable speed pumps leverage the Affinity Laws of hydraulics. Reducing pump speed by just 50% reduces electrical power consumption by up to 87.5%. The pump automatically senses closing zone valves and slows down, using only the exact energy required for the real-time heating load.
A: Yes, retrofitting is highly effective but requires preparation. You must perform hydraulic balancing to ensure proper flow distribution. Crucially, you must install magnetic dirt separators to protect the new pump's permanent magnets from the iron oxide sludge common in older steel piping.
A: An ECM uses permanent magnets and a built-in variable frequency drive. It does not waste energy inducing a magnetic field. This results in significantly higher electrical efficiency, superior partial-load performance, and cooler operation compared to standard AC induction motors.
A: High energy use usually stems from implementation errors. The pump was likely left on a fixed-speed factory default setting during installation. Alternatively, the hydronic system is severely unbalanced, or the specified pump is drastically oversized for the actual piping network's system curve.
A: While most top-tier manufacturers offer BMS connectivity, you must verify the exact communication protocols. Ensure the manufacturer's specific digital modules perfectly match your facility's existing control architecture, such as BACnet IP or Modbus RTU, to guarantee seamless data integration.
