XBD-S type of fire pumps are horizontal split double-suction fire pump unit and applied toclean water agent extinguishing fire not including boat fire pump, portable fire pump.
| Quantity: | |
|---|---|

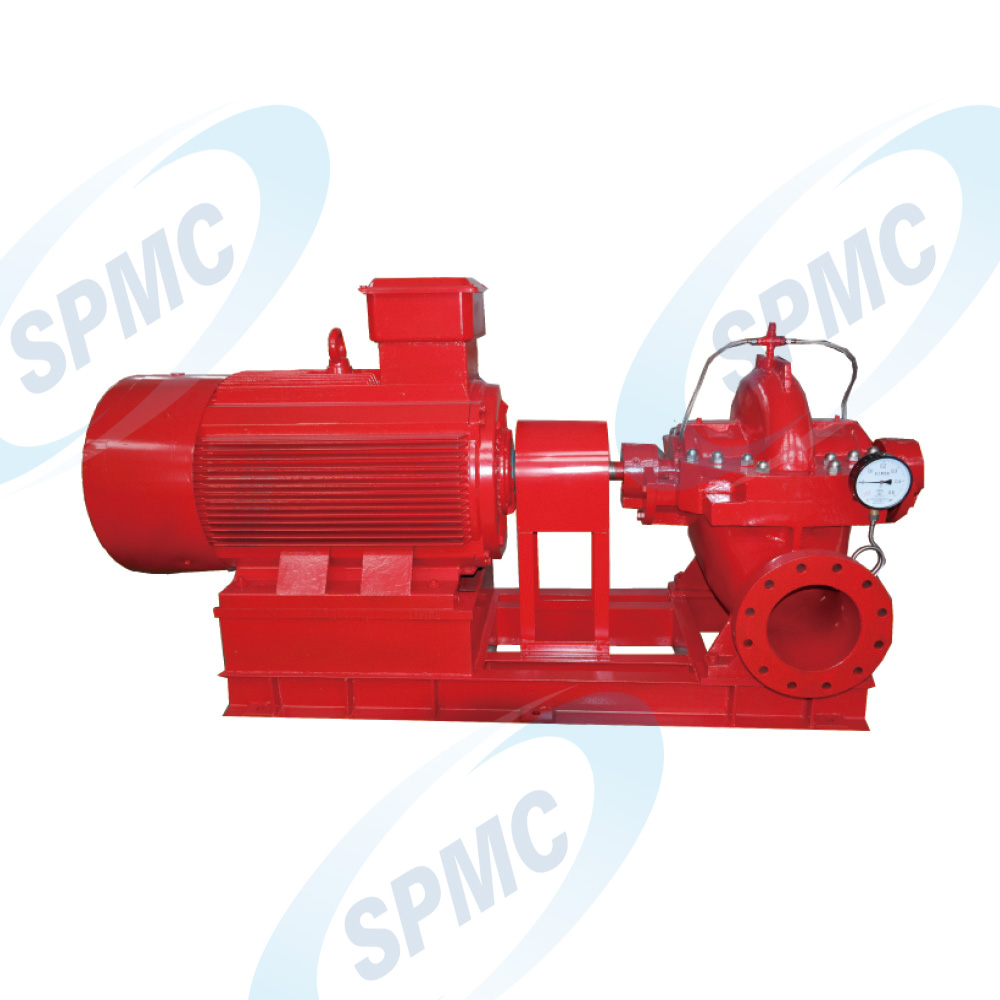

XBD-S Type Fire Pump is a specialized horizontal split double-suction fire pump unit engineered exclusively for clean water agent extinguishing systems. Excluding boat-mounted and portable fire pumps, this unit is designed to deliver stable, high-pressure flow for emergency fire suppression in commercial buildings, industrial facilities, and municipal fire networks. Its core advantage lies in fire-fighting reliability—meeting strict global fire safety standards to ensure quick activation and consistent performance during critical situations.
The double-suction structure maintains a steady head of 0.26–1.68Mpa (equivalent to 26–168m water column) even at peak flow (0–600 L/s). This prevents pressure drops that could compromise fire suppression efficiency—essential for protecting large spaces like warehouses or shopping malls.
Optimized motor and impeller alignment enable instant pump activation (≤3 seconds) during emergencies. Every second saved reduces fire spread risk, making this pump a critical component of active fire safety systems.
The horizontal split design fits into standard fire pump rooms, eliminating the need for tall installation spaces required by vertical fire pumps. This simplifies on-site installation and reduces retrofitting costs for existing buildings.
Components like the pump body and shaft use heat-resistant cast iron and corrosion-resistant coatings. They withstand high temperatures during fires and resist moisture damage in humid pump rooms—ensuring long-term readiness.
Parameter | Specification Range |
Capacity | 0–600 L/s |
Head | 0.26–1.68Mpa |
Power | 18.5–560kW |
Pump Sizes (Diameter) | 100–500mm |
Speed | 1450–2950r/min |
Application | Clean water fire extinguishing (non-boat, non-portable) |
Each XBD-S Type Fire Pump undergoes 100% factory testing, including pressure hold tests (to verify leak resistance) and start-up simulations (to ensure emergency responsiveness). Units comply with GB 6245 (China’s fire pump standard) and NFPA 20 (U.S. fire protection standard).
We offer a 12-month warranty (starting from on-site commissioning) covering mechanical defects. Extended warranties are available for critical facilities like data centers or hospitals.
The sealed bearing system requires no frequent lubrication, and the corrosion-resistant finish prevents rust. Monthly 10-minute activation tests (recommended) keep the pump emergency-ready without heavy upkeep.
Yes—it integrates seamlessly with automatic sprinkler systems and fire hydrant networks. Its stable pressure output ensures uniform water distribution across all sprinkler heads.
Absolutely. The pump is compatible with emergency generators (18.5–560kW capacity), ensuring operation during power outages—critical for uninterrupted fire suppression.
With proper maintenance, the pump has a service life of 8–10 years. Key components like impellers and seals can be replaced to extend usability further.
Protect your facility with a fire pump you can trust—choose the XBD-S Type Fire Pump. Click Inquire Now to request a fire safety assessment or technical datasheet, or Add to Basket for priority shipping. Our team specializes in customizing fire pump solutions—don’t compromise on emergency safety!
