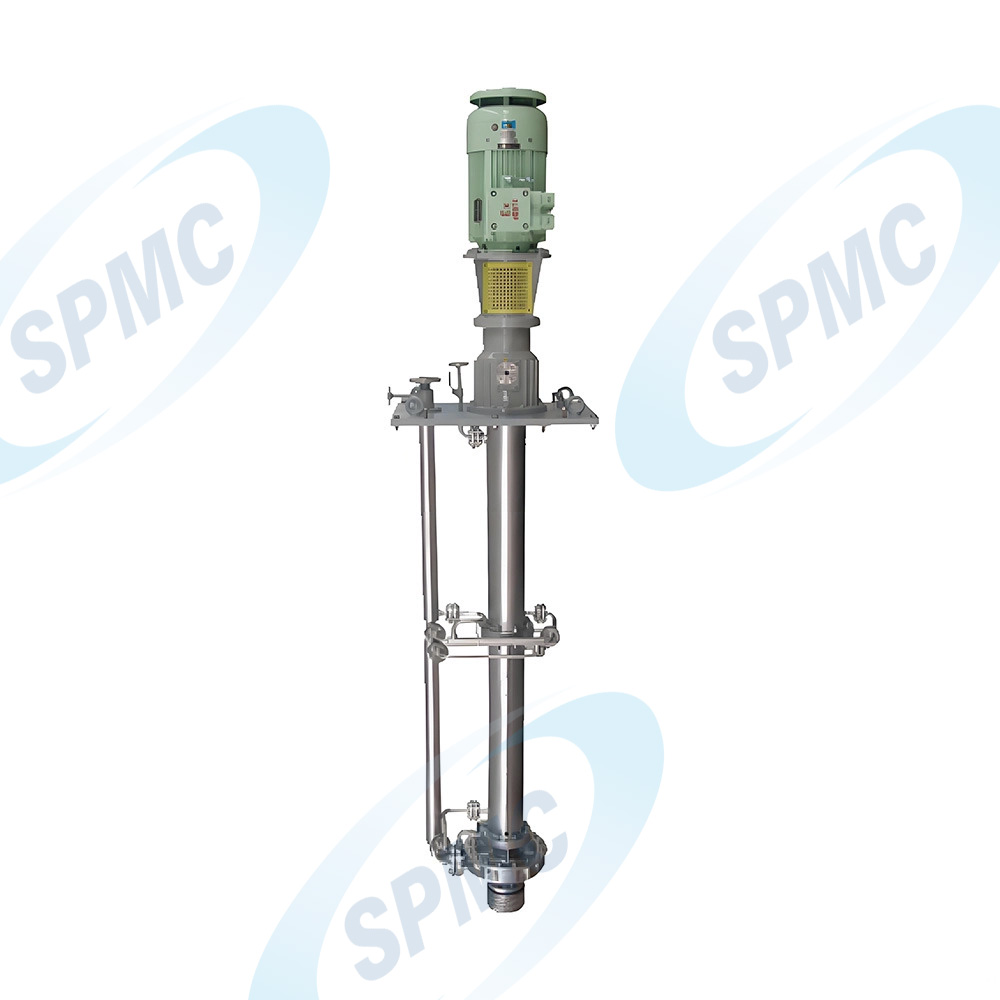

This is a SPCV-type chemical submerget pump with its structure conforming to APl610 VS4. Executive standard: According to APl610 standard, it is suitable for many areassuch as power plants, chemical plants, sewage pumps, steel mills and paper mills.
| Quantity: | |
|---|---|
The SPCV Chemical Submerged Pump is a top-tier industrial fluid-handling device engineered to meet the rigorous demands of harsh chemical and industrial environments. Compliant with the API610 VS4 standard—a global benchmark for reliability in rotating equipment—it delivers consistent performance for transferring corrosive, high-temperature, or contaminated liquids. Unlike generic submersible pumps, this model is specifically designed for critical sectors including power plants, chemical plants, steel mills, paper mills, and sewage treatment facilities, ensuring "data-driven" fluid transfer with zero leakage and minimal downtime. Whether handling acidic solutions, industrial wastewater, or high-viscosity chemicals, the SPCV Chemical Submerged Pump guarantees operational safety and long-term durability, making it the preferred choice for industries where fluid integrity is non-negotiable.
As an API610 VS4-certified pump, the SPCV Chemical Submerged Pump undergoes strict testing to meet global industrial standards. This certification ensures compatibility with international safety protocols, reducing regulatory risks for multi-site operations.
With a temperature range of -20℃~+470℃, the pump excels in both cryogenic and high-heat applications—from cooling systems in power plants to chemical reaction processes. This flexibility eliminates the need for multiple pump models, cutting equipment costs by up to 30%.
Built with high-grade alloy materials, the pump’s housing and impeller resist degradation from aggressive chemicals (e.g., sulfuric acid, caustic soda). This feature extends service life to 5+ years, far exceeding the 2–3 year average of standard submersible pumps.
Boasting a capacity range of 2–400 m³/h and head of 3–100m, the pump adapts to diverse flow demands—from low-volume precision transfer in laboratories to high-volume wastewater disposal in steel mills.
The pump’s sealed submersible design prevents debris entry and reduces component wear. Routine maintenance only requires quarterly inspections, saving labor costs and minimizing unplanned downtime.
Parameter | Specification |
Capacity | 2–400 m³/h (adjustable via variable speed control) |
Head | 3–100m (optimized for vertical fluid lift in tanks/vessels) |
Temperature Range | -20℃+120℃ (standard); 0+170℃ (medium-duty); 0~+470℃ (high-temperature variant) |
Material | Impeller: Duplex stainless steel; Housing: Hastelloy C-276 (corrosion-resistant) |
Seal Type | Double mechanical seal (PTFE-coated, leak-proof) |
Power Source | 3-phase AC motor (220V/380V/440V, 50/60Hz) |
Installation Type | Fixed submerged (compatible with tanks, pits, and open reservoirs) |
The SPCV Chemical Submerged Pump is built to withstand extreme industrial conditions, backed by a 2-year manufacturer warranty. Every unit undergoes:
100% performance testing (flow, head, and leakage) before shipment;
Material certification (ASTM standards for alloys and seals);
Simulated 1,000-hour runtime tests for high-temperature variants.
This rigorous quality control ensures the pump operates reliably in environments with high humidity, dust, or chemical fumes—critical for steel mills and chemical plants where equipment failure risks production losses.
It is designed for corrosive chemicals (e.g., acids, alkalis), industrial wastewater, and slurries with <5% suspended solids (particle size <4mm). It is not suitable for flammable or explosive liquids.
The pump supports safe immersion up to 5m (with optional extended cables for deeper tanks), compliant with API610 VS4 safety guidelines.
No—this model is optimized for industrial (non-food) applications. For food-grade needs, consider our CPK Series centrifugal pumps.
Quarterly inspections (seal condition, motor temperature) and annual oil changes are recommended. The corrosion-resistant design reduces major overhauls to once every 3 years.
Ready to optimize fluid transfer in your chemical plant or power plant?
Inquire Now about custom configurations (e.g., high-temperature variants);
Add to Basket for standard models (ships within 7 business days);
Contact Our Engineers for a free flow/head calculation tailored to your needs: sales@spmc-pumps.com.
