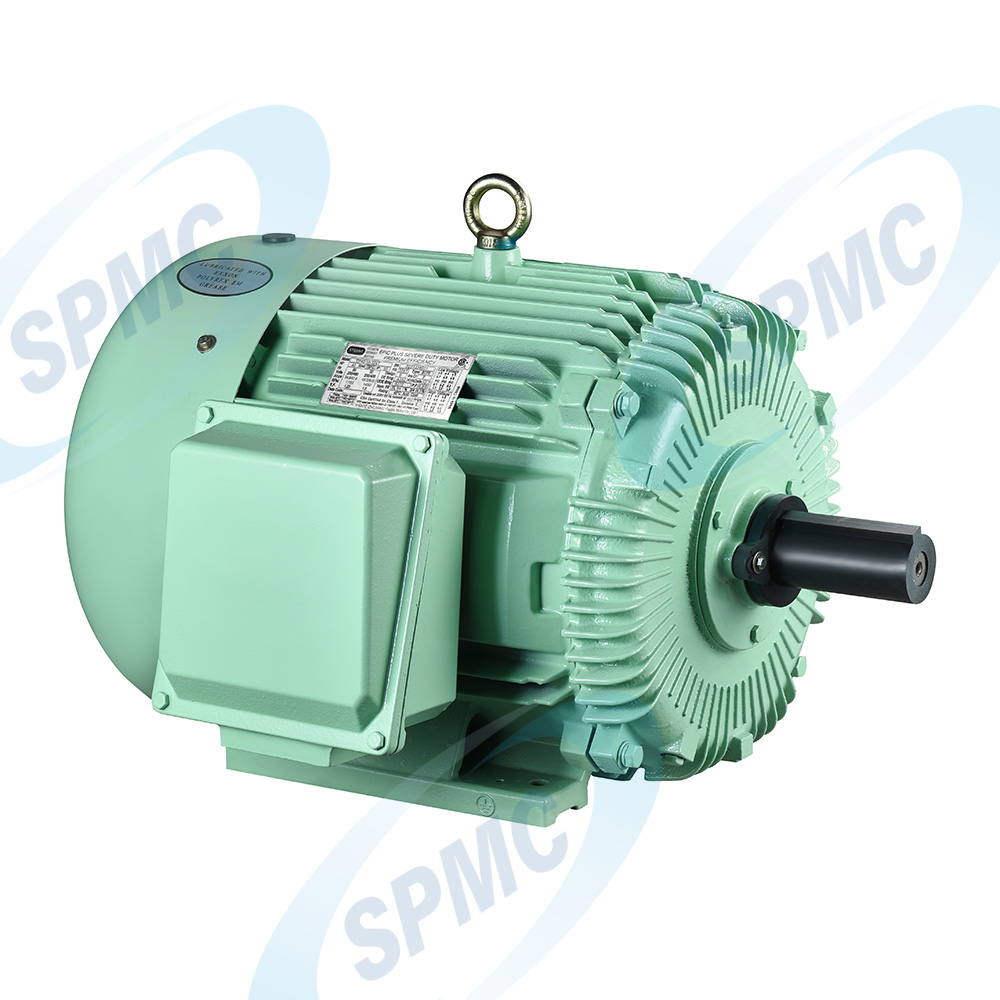

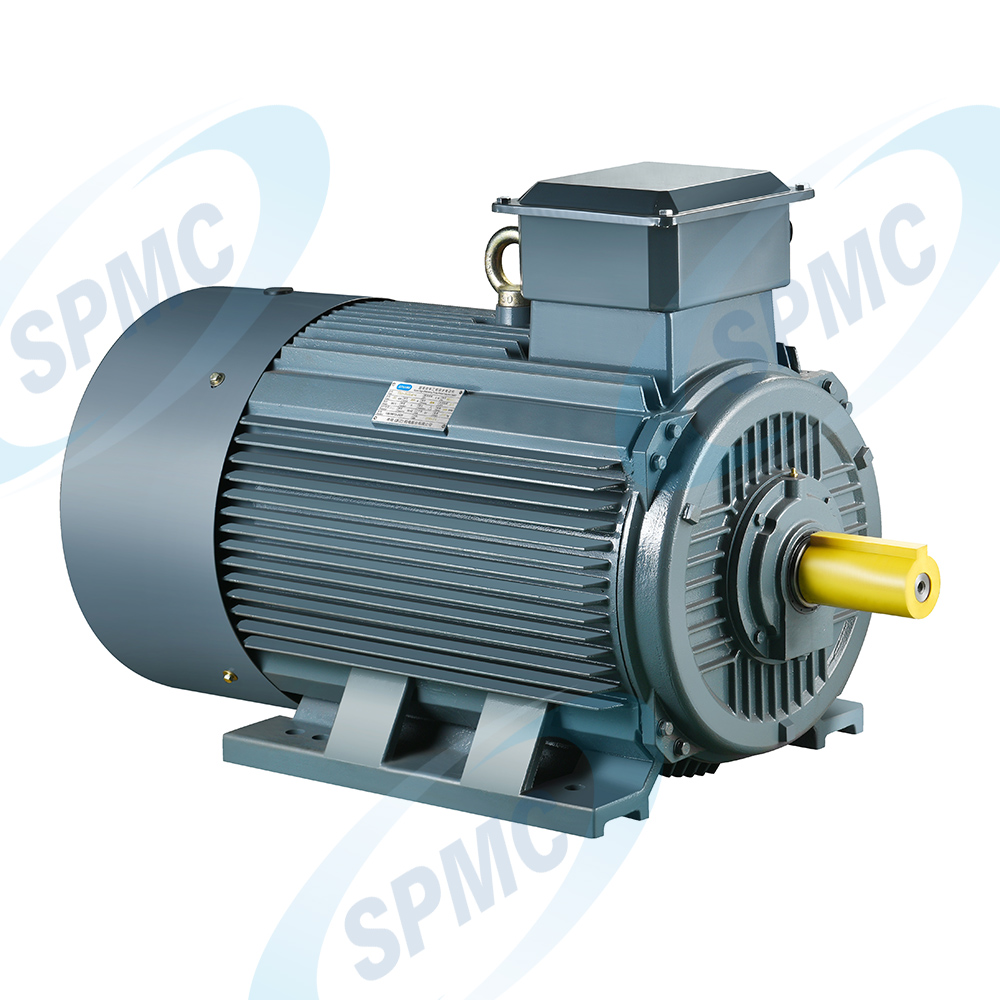

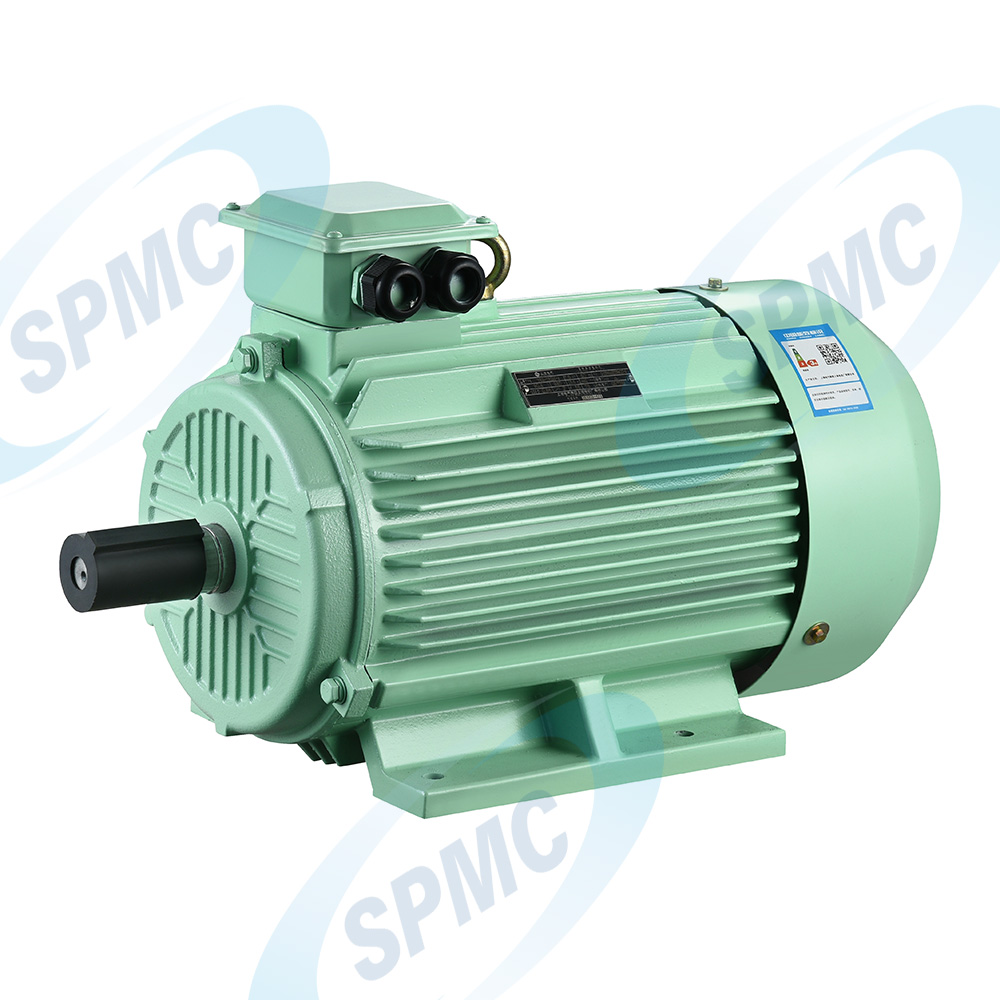

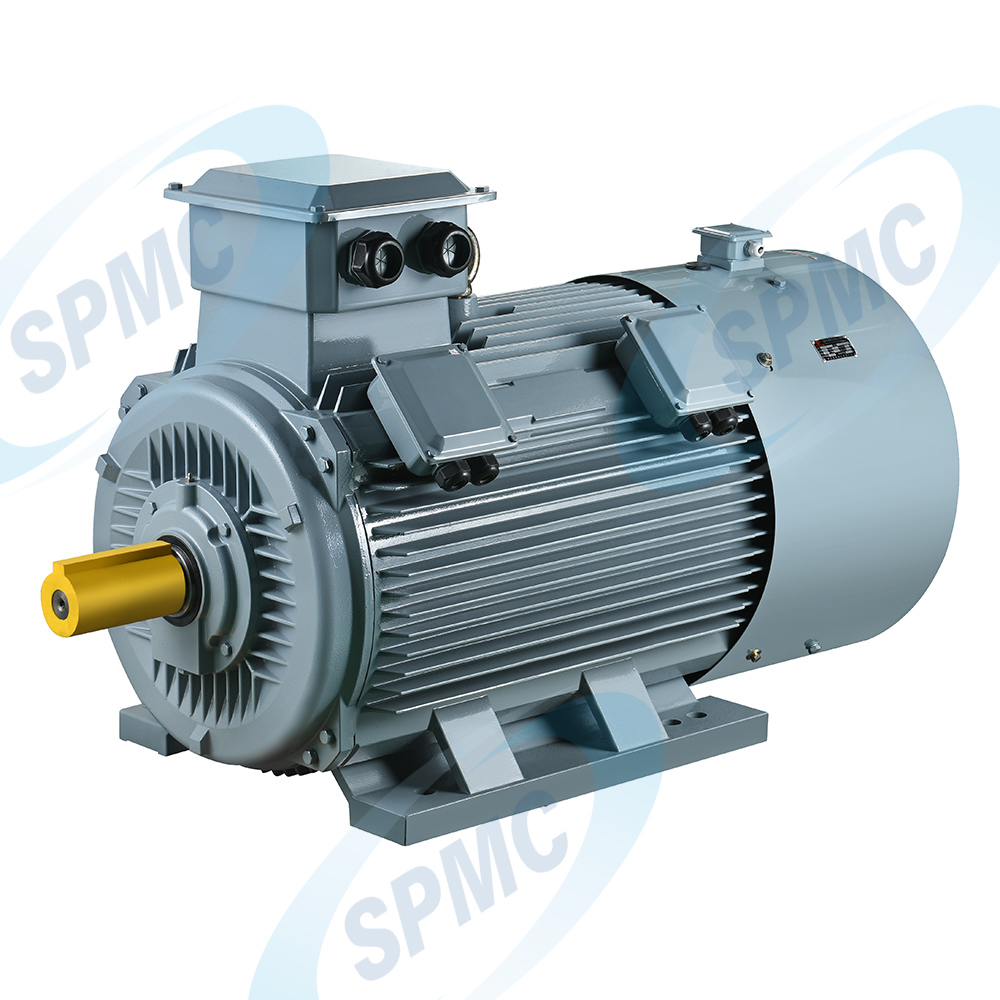

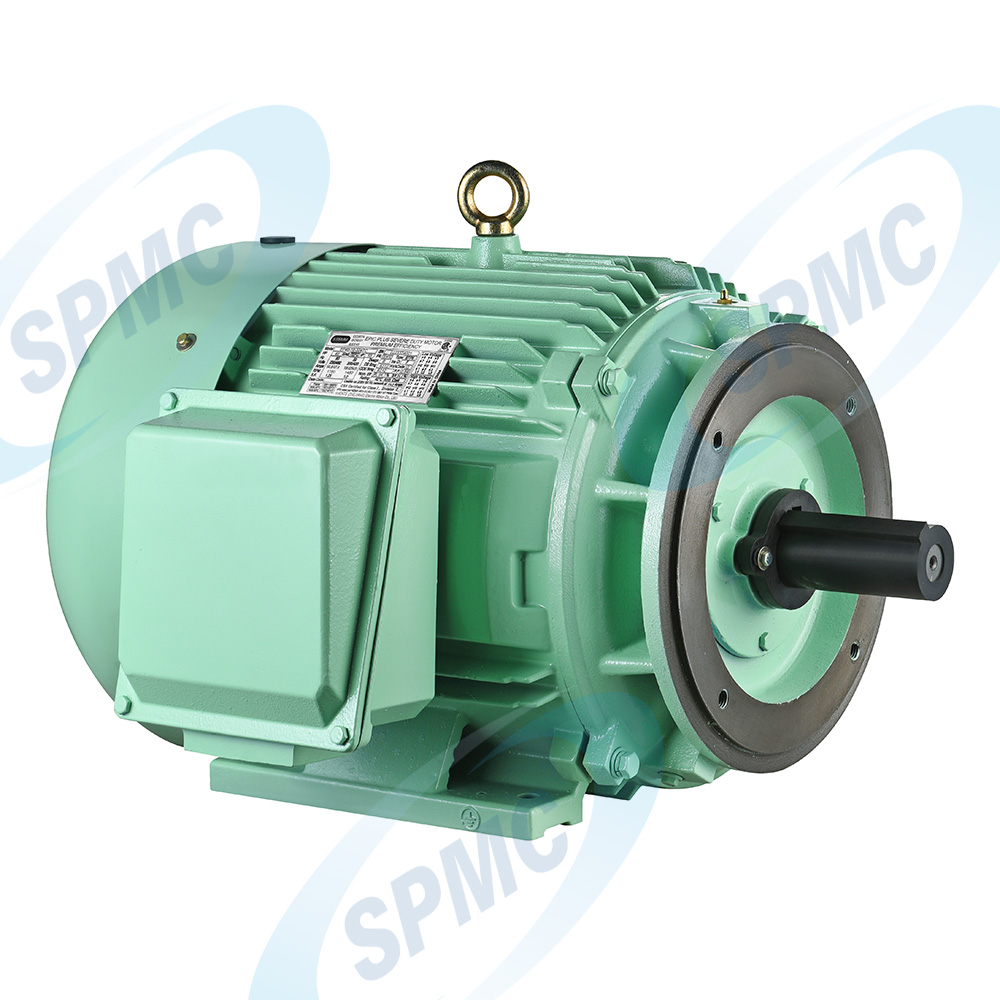

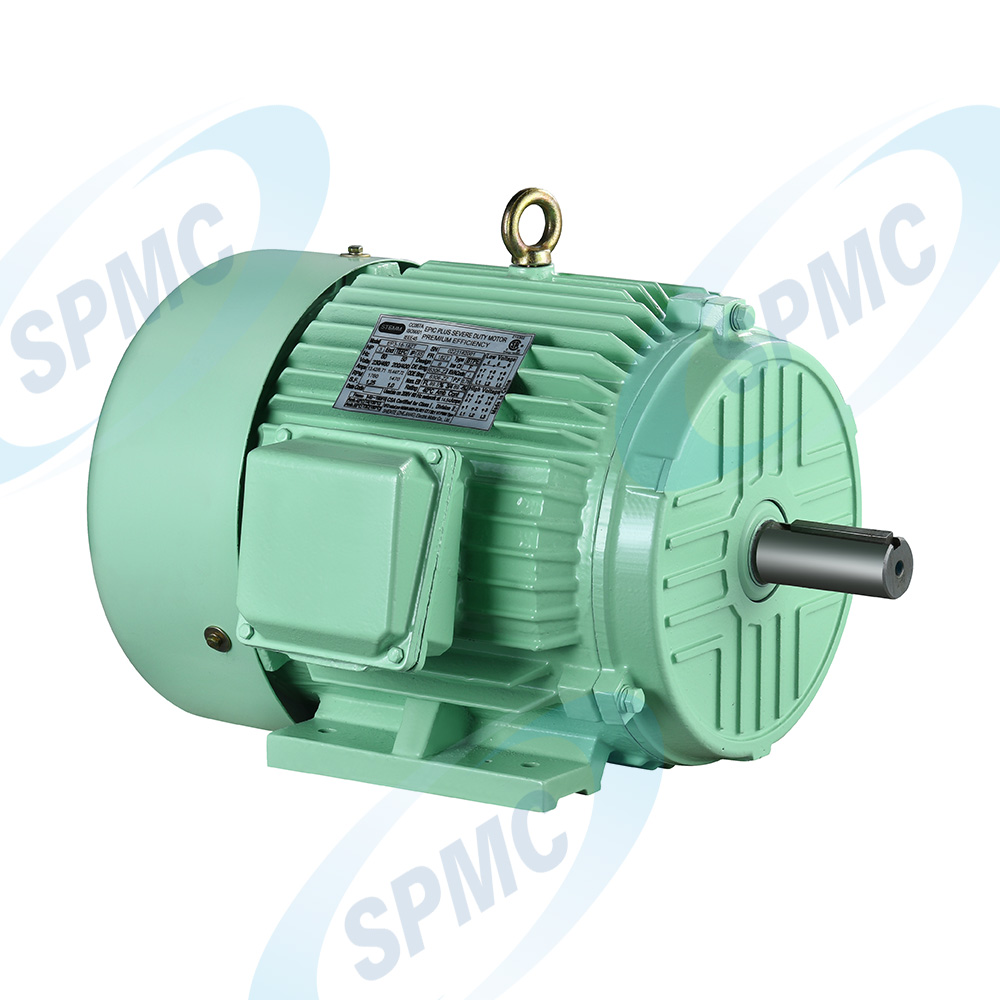

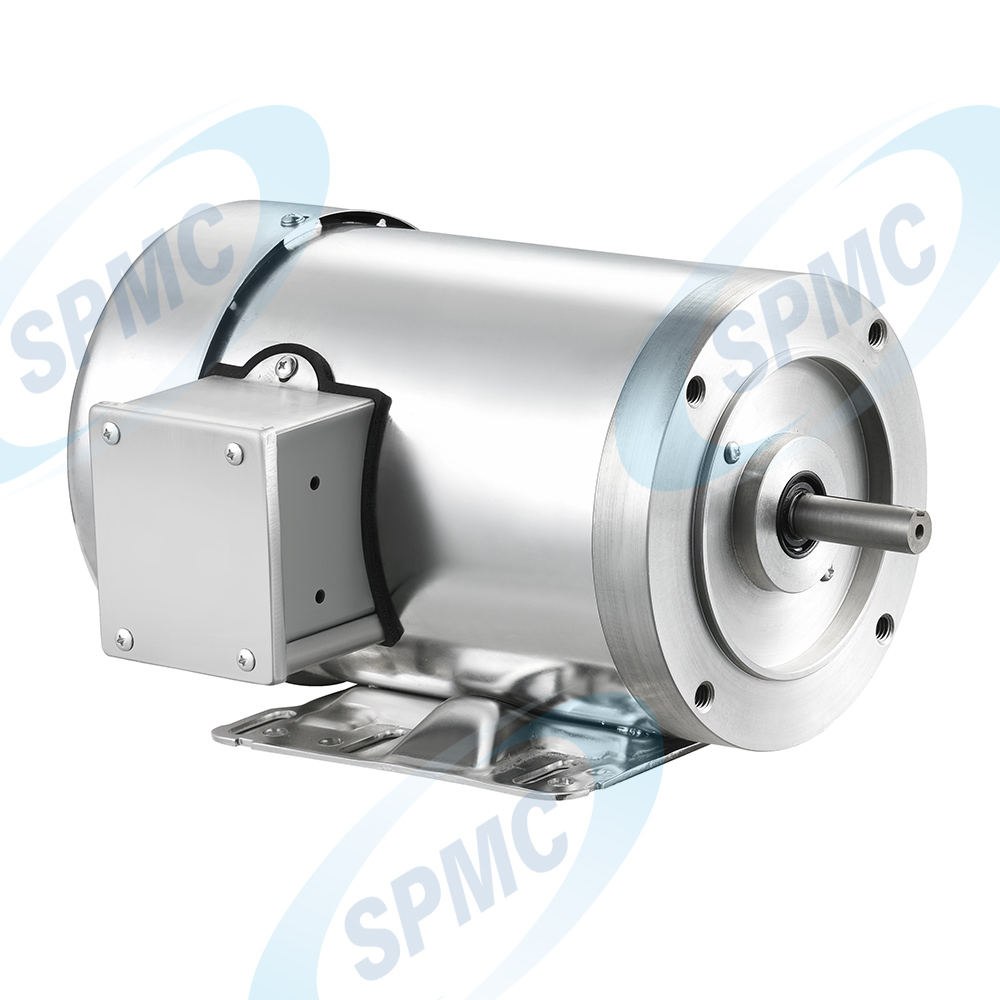

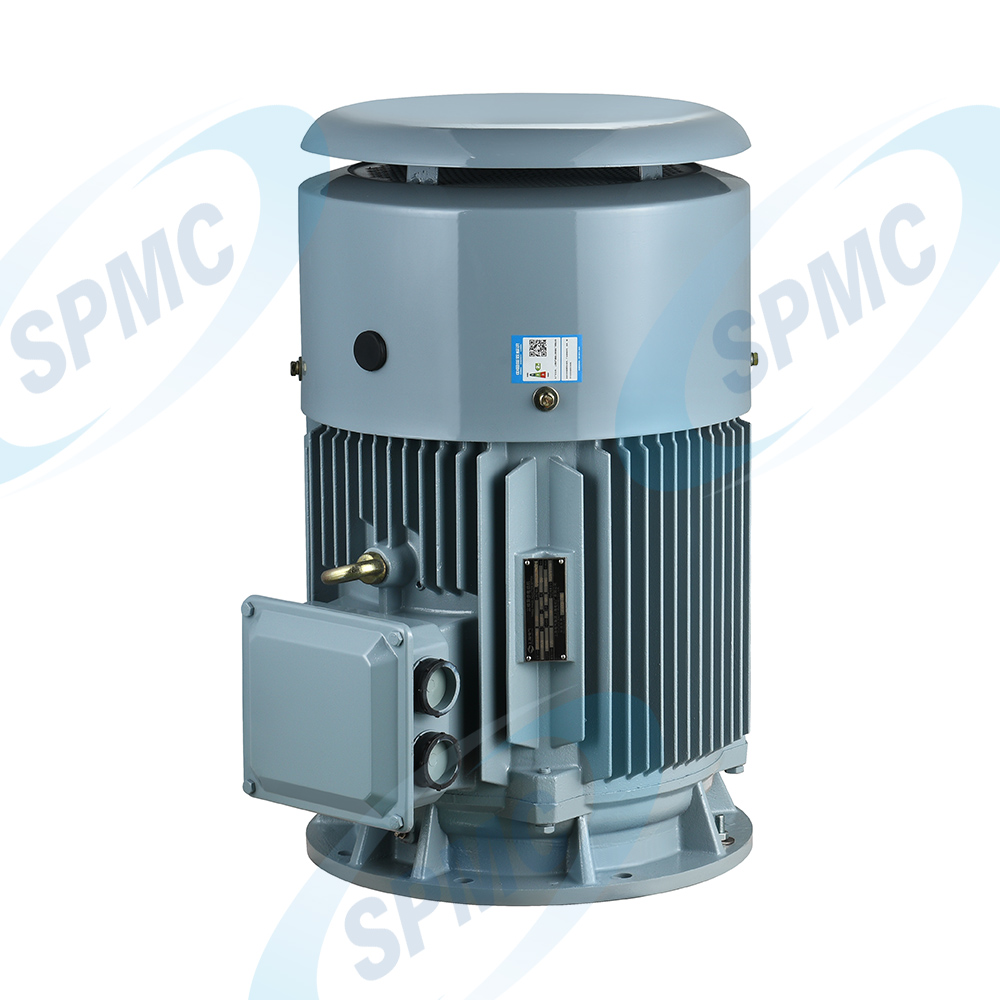

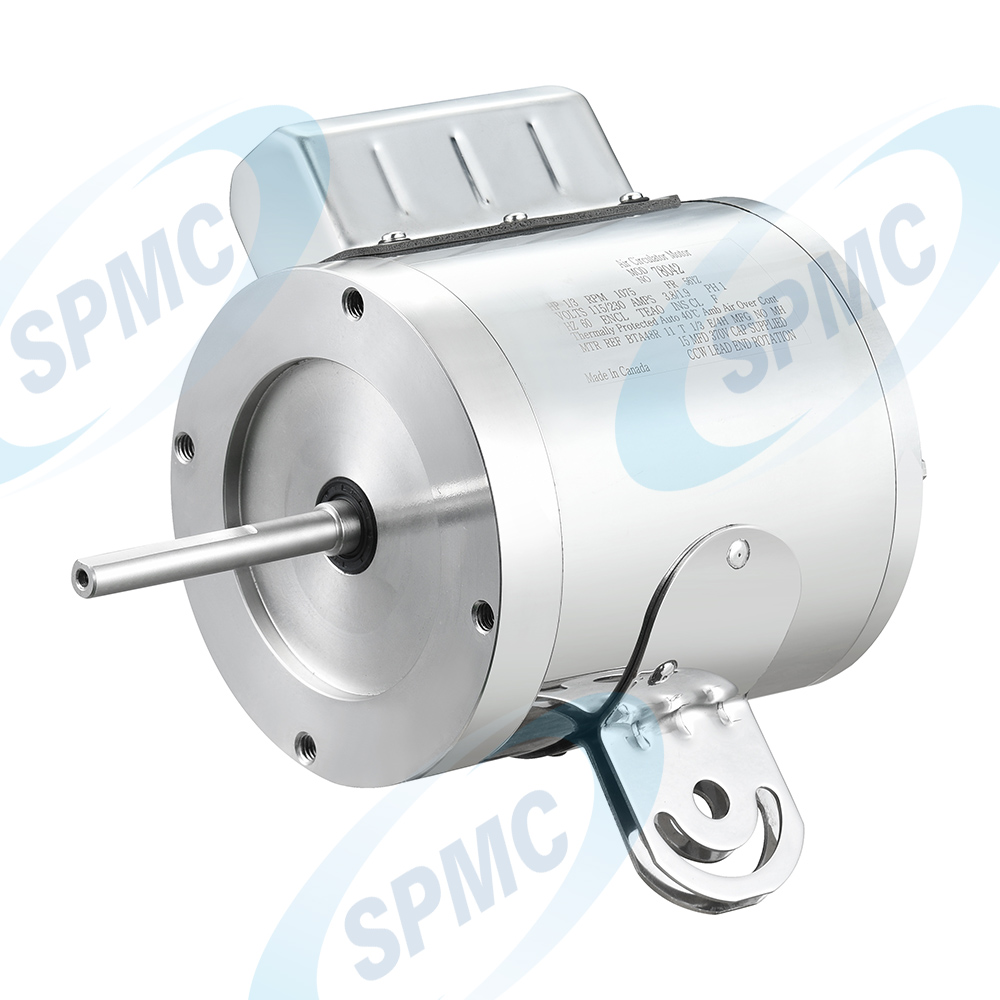

These series provide a cost-efficient solution,with totally-enclosedfan cooling.
The motors have large starting torquc, low noise, smallvibration,high efficiency,high degree of protection,large margin oftemperature rise,safe and reliable operation, etc. It can drive machinetools,fans, pumps, compressors, mixers, packaging machinery,construction machinery and other mechanical transmissioncquipment,widely used in industriessuch as agriculture, nationaldefense,chemical industry, petrolcum,transportation, food andbeverages,medicine and other fields.
| Quantity: | |
|---|---|
Product Overview
YE3,YE4. YE5 series respecivelvconform to the energy efficlency level of GB18613-2020 EnergyEfficlency Limits as shown in the table below;
| Series Code | Energy Efficiency Grade | EC Energy Efficiency Grade | Remark |
| YE3 | Level 3 energy efficiency | IE3 | GB18613-2020 & IEC60034-30-1Energy efficiency standards:GB18613-2020AndIEC60034-30-1:2014 |
| YE4 | Level 2 energy efficiency | IE4 | |
| YE5 | Level 1 energy efficiency | IE5 |
Model and characteristic
| YE3 Series : YE3-160L-4 | |||
| Y | Asynchronous Motor | 160 | Frame size |
| E | High Efficiency | L | Core Length |
| 3 | Encrgy Efficency Grade | 4 | Poles |
Technical characteristics
YE3,YE4,YE5 Series
1.standard installation structure type (in accordance with GB/ T997);2.155(F) class insulation, which can meet 130(B)classtemperaturerise assessment;3.SI duty, IC411,up to IP55;4.sealedbearings for frame size 225 and below,re-lubricationstructurefor frame size above 2255.terminal box located at the top of theframe,which can also bearranged to the left or right as required;6.different temperature measuring elements and heaters can
beselected according to the needs.
 |  |  |  |  |
 |  |  |  |  |
