Many professionals replace a failed circulating pump by swapping it for an identical model. This dangerous habit often repeats decades-old sizing errors. Relying on historical guesswork no longer works in today's advanced HVAC industry. Modern low-mass condensing boilers demand precise fluid dynamics. This precision prevents system lockouts and premature mechanical failure. The cost of inaccuracy is incredibly steep. If you oversize the equipment, you trigger excessive velocity noise. You also cause pipe erosion and waste massive amounts of energy. Undersize it, and you face inadequate heat transfer alongside dangerous equipment overheating. We created this comprehensive guide to provide a standardized, evidence-based evaluation framework. You will learn how to calculate flow rates accurately. We will show you how to determine head loss and map performance curves. Ultimately, we will help you select the exact equipment required for your specific system architecture.
Material dictates survival: Open-loop systems require bronze or stainless steel to prevent rapid oxidation; closed-loop systems safely use cast iron.
Flow Rate (GPM) is tied to heat load: Do not guess; use the strict 1 GPM = 10,000 BTU/hr (at 20°F ΔT) formula for baseline pure water systems.
Head Loss is about friction, not height: In closed systems, calculate resistance based strictly on the single longest pipe run, not the total building elevation.
Avoid the edges of the pump curve: Optimal operation, longevity, and efficiency occur when your system's duty point lands in the middle third of the manufacturer's performance curve.
Before calculating any numbers, identify if your system is open or closed. This fundamental step restricts your hardware material choices. Using the wrong casing material voids manufacturer warranties. It also guarantees early mechanical failure in the field.
These represent standard HVAC heating and cooling circuits. They remain completely isolated from atmospheric oxygen. Gravity pushes down equally as it pulls up inside these sealed loops. Therefore, structural building height remains entirely irrelevant to your calculations. The unit only needs to overcome internal pipe friction. Cast iron serves as the industry standard here. It provides the most cost-effective and durable solution for oxygen-free environments. You will see cast iron housings on nearly every residential boiler loop.
These designs include outdoor wood boilers and potable water networks. Atmospheric loops also fall squarely into this category. You must calculate both elevation and friction for open loops. Oxygen exposure remains constant in these open designs. You must specify bronze, stainless steel, or specialized composite water pump models. These premium materials withstand constant oxidation perfectly. They prevent the rust lock-ups common in cheaper metals.
Never install cast iron housings in domestic hot water systems.
Always check local plumbing codes regarding lead-free brass or bronze requirements.
Use isolation valves around your equipment to simplify future maintenance.
Your decision framework logically starts here. The volume of fluid moved must precisely match the thermal transfer requirements. You measure this demand via the heat source capacity in BTUs. You must also establish the target temperature drop across the system.
Calculate the Flow Rate by dividing the total Heat Load by a fixed multiplier. You multiply 500 by your target temperature drop.
Professionals use a strict rule of thumb for pure water systems. At a standard 20°F temperature drop, one GPM delivers exactly 10,000 BTUs per hour. For example, a 150,000 BTU boiler demands exactly 15 GPM to function correctly. Do not guess these numbers.
Fluid velocity must stay between two and four feet per second. Lower velocities fail to clear trapped air bubbles from the piping. Higher velocities cause severe acoustic noise. Fast-moving water also accelerates internal pipe degradation over time. You must verify your calculated flow against pipe diameter maximums.
Maximum Safe Flow Rates by Copper Pipe Size | |
Nominal Pipe Size | Maximum Safe Flow Rate |
|---|---|
1/2 inch | 1.5 GPM |
3/4 inch | 4.0 GPM |
1 inch | 8.0 GPM |
1-1/4 inch | 14.0 GPM |
1-1/2 inch | 22.0 GPM |
Many modern systems utilize glycol or antifreeze blends. Snowmelt circuits frequently require these specialized mixtures. You must adjust your mathematical multiplier when using them. Drop the constant from 500 down to 450 for a fifty percent glycol mixture. This specific adjustment compensates for increased fluid viscosity. It also accounts for the lower heat capacity of the antifreeze blend.
Head loss represents the frictional resistance the fluid encounters. Think of it as physical effort. The equipment must actively push fluid through pipe walls, elbows, valves, and heat exchangers. Every directional change robs the system of momentum.
Do not add up every circuit in a multi-zone layout. Calculate friction only for the single longest, most restrictive piping run. If your equipment can overcome the path of highest resistance, it naturally covers shorter paths. Adding all loops together results in massive oversizing.
You can determine pressure drop using two distinct engineering approaches.
The Quick Field Estimate: Under maximum safe flow velocity, allow roughly six feet of head per 100 feet of equivalent piping. This simple metric factors in your straight pipe runs. It automatically includes a fifty percent allowance for fittings and valves. Contractors use this frequently for residential retrofits.
The Rigorous Engineering Method: Calculate the Total Equivalent Length first. Add your straight pipe length to the equivalent length constants of your fittings. Next, add the exact pressure drops of your boilers and indirect tanks. You will find these specific values published on manufacturer specification sheets.
Common Mistake: Installers often forget to include the boiler's internal pressure drop. Low-mass condensing boilers often have very high internal resistance. Always read the technical manual before finalizing your head loss numbers.
You established your target Flow Rate on the X-axis. You determined your exact Head Loss on the Y-axis. The intersection of this data creates your specific duty point.
Plot your duty point directly onto a manufacturer's curve chart. These charts display how a specific model performs under varying resistances. Select a unit whose performance curve arcs just above your specific duty point. This ensures you have slightly more capacity than your absolute minimum requirement.
Contractors often round up capacity excessively. They do this simply to feel safe. This habit creates severe operational issues. A significantly oversized unit operates at the extreme right of its curve. This dangerous positioning causes immediate cavitation. It destroys internal seals and creates severe flow noise throughout the building.
Target the middle third of the performance curve. This placement ensures maximum hydraulic efficiency. It also vastly extends the motor lifespan. Operating in the middle third prevents the unit from working too hard or running too fast.
Performance Curve Placement Impact | ||
Curve Position | Operational Result | System Impact |
|---|---|---|
Extreme Left | Dead-heading / Low Flow | Overheating, premature motor failure |
Middle Third | Optimal Duty Point | High efficiency, quiet operation, long life |
Extreme Right | Oversized / High Velocity | Cavitation, pipe erosion, loud noise |
Modern pumping technology offers numerous advanced features. You must match these capabilities to your specific project demands.
Transition away from outdated single-speed motors for dynamic systems. Look for ECM technology instead. Electronically Commutated Motors offer massive performance improvements. Adaptive performance automatically throttles the flow based on zone valve closures. This smart technology prevents dead-heading entirely. It pays for itself through massive electricity savings over time.

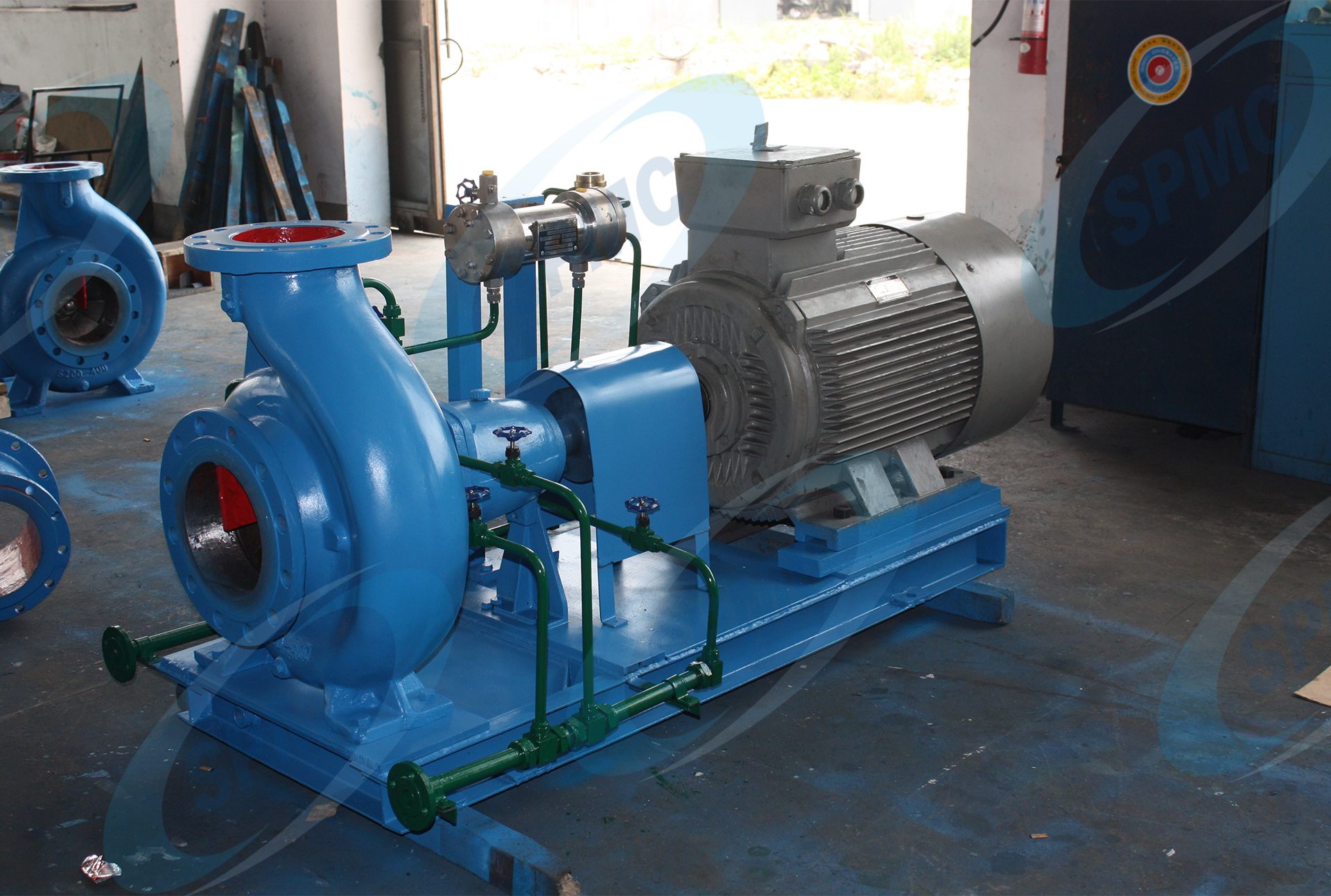

Standard mid-to-high capacity hot water applications require robust engineering. Evaluate product lines designed specifically for sustained thermal performance. The SPR Series Hot Water Circulation Pump serves as an excellent benchmark. It offers incredibly durable sealing built specifically for continuous temperature cycling. This prevents leaks in demanding commercial boiler rooms.
Large-scale industrial or central plant applications demand massive flow rates. They also require incredibly low vibration to protect adjacent infrastructure. For these massive projects, transition your specification to an OTS(R) Efficient Single-stage Double Suction Centrifugal Pump. Double suction architectures perfectly balance internal axial loads. This design critically extends bearing life in grueling high-demand environments.
Some systems feature high flow but low head requirements. Consider specifying two smaller parallel units rather than one massive oversized machine. This clever strategy extends the performance curve horizontally. It also provides built-in mechanical redundancy. If one unit requires maintenance, the second keeps the building warm.
Proper equipment sizing is not a guessing game. It remains a strict mechanical formula based on heat load, friction, and fluid dynamics. Resist the urge to rely on legacy rules of thumb. You must verify the math, especially when retrofitting modern high-efficiency boilers.
Next Steps:
Gather your boiler's exact BTU rating directly from the manufacturer nameplate.
Measure your longest piping run to establish a baseline equivalent length.
Verify your fluid type and exact glycol concentration percentage.
Map your verified specifications against manufacturer performance curves to find your ideal duty point.
A: No, provided it is a closed-loop, pressurized HVAC system. The weight of the water falling down one side of the loop cancels out the weight of the water being pushed up. You only calculate for pipe friction.
A: A noisy water pump is typically the result of oversizing. If the pump pushes a GPM higher than the maximum velocity limit of your pipe diameter (e.g., pushing 8 GPM through a 1/2" pipe), it creates acoustic turbulence and cavitation.
A: Usually no. Outdoor boilers often operate as open, non-pressurized atmospheric loops. Standard cast-iron closed-loop pumps will rapidly rust in these oxygen-rich systems. You must use bronze or stainless steel cartridges.
A: Glycol is thicker than water and holds less heat. Consequently, your system will require a slightly higher flow rate (GPM) and the pump will face more friction (head loss) to deliver the same amount of heating compared to pure water.
